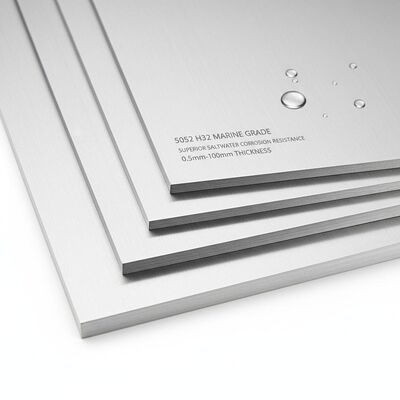

5052 H32 Marine Grade Aluminum Sheet Plate with 0.5mm-100mm Thickness for Superior Saltwater Corrosion Resistance

  • 5052 H32 Marine Grade Aluminum Sheet Plate with 0.5mm-100mm Thickness for Superior Saltwater Corrosion Resistance
  • 5052 H32 Marine Grade Aluminum Sheet Plate with 0.5mm-100mm Thickness for Superior Saltwater Corrosion Resistance
  • 5052 H32 Marine Grade Aluminum Sheet Plate with 0.5mm-100mm Thickness for Superior Saltwater Corrosion Resistance
  • 5052 H32 Marine Grade Aluminum Sheet Plate with 0.5mm-100mm Thickness for Superior Saltwater Corrosion Resistance
Luogo di origine Shandong, Cina
Marca Hongtu
Certificazione ISO 9001:2015, SGS, DNV, ABS (upon request)
Numero di modello 5052-H32
Quantità di ordine minimo 500KG
Prezzo USD 2.6-3.8 / kg
Imballaggi particolari Carta antiruggine interfogliata, pellicola PE avvolta, pallet in legno per esportazione con reggette
Tempi di consegna 3-5 giorni lavorativi per stock, 10-20 giorni per produzione
Termini di pagamento T/T,L/C,PayPal,Western Union
Capacità di alimentazione 3000 tonnellate al mese
Dettagli
Lega 5052 Temperare H32, H34, H36, H38, H112
Spessore 0.5 mm - 100 mm Larghezza 1000 mm, 1250 mm, 1500 mm, 2000 mm
Lunghezza 2000 mm, 2440 mm, 3000 mm, 6000 mm o personalizzato Standard ASTM B209, EN 485, GB/T 3880
Finitura superficiale Finitura mulino, anodizzato, rivestito, goffrato Resistenza alla trazione 210 - 260MPa
Forza di rendimento MPa del ≥ 160 Allungamento ≥ 7-12%
Applicazione Scafi marini, ponti di imbarcazioni, serbatoi di carburante, recipienti a pressione
Evidenziare

5052 H32 Marine Aluminum Sheet

,

Boat Building Aluminum Plate 5052

,

Corrosion Resistant Marine Grade Alloy
Lasciate un messaggio
Descrizione di prodotto
5052 H32 Marine Grade Aluminum Alloy Sheet Plate
The 5052 H32 aluminum alloy sheet is the industry-standard marine grade aluminum, offering the highest strength in the non-heat-treatable 5000 series. With exceptional corrosion resistance in saltwater environments and excellent formability, it is the preferred choice for boat building, marine structures, and fuel tank fabrication.
Key Features
  • Superior Saltwater Corrosion Resistance: High magnesium content (2.2-2.8%) provides outstanding protection against marine atmospheric corrosion
  • Excellent Weldability: Compatible with TIG, MIG and resistance welding with minimal strength loss in heat-affected zone
  • Good Formability: H32 temper offers an optimal balance of strength and workability for bending, deep drawing and stamping
  • High Fatigue Strength: Ideal for dynamically loaded marine structures subject to wave action
  • Non-Heat-Treatable: Strain-hardened temper provides consistent properties without heat treatment distortion
Chemical Composition (Weight %)
Element Si Fe Cu Mn Mg Cr Zn Al
Min - - - - 2.2 0.15 - Remainder
Max 0.25 0.40 0.10 0.10 2.8 0.35 0.10
Mechanical Properties (H32 Temper)
Property Value
Tensile Strength 210 - 260 MPa
Yield Strength ≥ 160 MPa
Elongation ≥ 7% (1.0-6.0mm), ≥ 12% (>6.0mm)
Hardness (Brinell) 60 HB
Density 2.68 g/cm³
Available Dimensions
Parameter Range
Thickness 0.5mm - 100mm
Width 1000mm - 2000mm
Length 2000mm - 6000mm or Custom
Temper H32, H34, H36, H38, H112, O
Applications
  • Boat hulls, decks and superstructures
  • Marine fuel tanks and water tanks
  • Dock ramps and floating platforms
  • Automotive fuel tanks and panels
  • Pressure vessels and chemical storage tanks
  • Electronic equipment chassis and panels
Our Advantages
  • Marine Certification Available: DNV, ABS and BV marine classification society certification upon request
  • Consistent Quality: ISO 9001:2015 certified production with full spectrographic and mechanical testing
  • Flexible Sourcing: Trial orders from 500 kg, full container loads available
  • Professional Export Packaging: Engineered to prevent moisture and physical damage during ocean freight
  • Inventory Advantage: Large stock of standard sizes for quick delivery within 3-5 working days
Inquire now for a tailored quotation, free sample, and expert technical support on 5052 H32 marine grade aluminum sheets.
