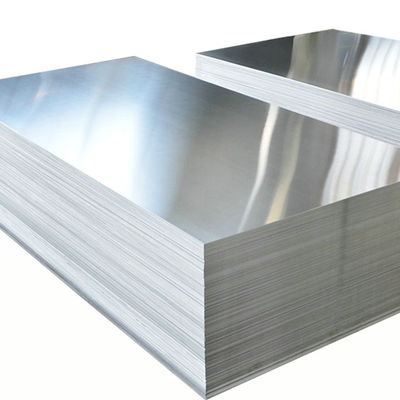

3003 Alloy Aluminum Sheet 1.5mm Thickness with Excellent Formability for Chemical Storage Tanks

  • 3003 Alloy Aluminum Sheet 1.5mm Thickness with Excellent Formability for Chemical Storage Tanks
Luogo di origine Shandong, Cina
Marca CHALCO
Certificazione ISO 9001:2015, ASTM B209, EN 485
Numero di modello AL3003-H14-1.5
Quantità di ordine minimo 1 tonnellata
Prezzo USD 2650-3050 / Ton
Imballaggi particolari Pellicola protettiva in PE su entrambi i lati, carta kraft, pallet in legno, imballaggio in contenit
Tempi di consegna 7-15 giorni lavorativi dalla conferma dell'ordine
Termini di pagamento T/T, L/C a vista
Capacità di alimentazione 7000 tonnellate al mese
Dettagli
Lega 3003 Temperare H14 (mezzo duro)
Spessore 1,5 mm Larghezza 1.000 mm/1.219 mm/1.500 mm/2.000 mm
Lunghezza 2000 mm/2438 mm/3000 mm/6000 mm Contenuto del manganese 10,0-1,5%
Resistenza alla trazione 140-180 MPa Allungamento ≥ 7%
Evidenziare

Manganese Alloy Anti Rust Sheet

,

Excellent Formability Aluminum

,

1.5mm Chemical Storage Tank Plate
Lasciate un messaggio
Descrizione di prodotto
3003 Anti Rust Aluminum Sheet 1.5mm Manganese Alloy Excellent Formability for Chemical Storage Tank Roofing Material
3003 Anti-Rust Aluminum Sheet - Manganese Alloy for Superior Formability

Our 3003 Anti-Rust Aluminum Sheet is a manganese alloyed grade that delivers approximately 20% greater strength than 1100 pure aluminum while maintaining excellent corrosion resistance. At 1.5mm thickness, this versatile sheet combines superior formability with outstanding weldability, making it the top choice for chemical storage tanks, building roofing systems, and general sheet metal fabrication.

Key Features
  • Manganese Strengthened: 1.0-1.5% manganese alloying provides 20% higher strength than commercially pure 1100 aluminum without compromising corrosion resistance
  • Excellent Corrosion Resistance: Outstanding performance in atmospheric, freshwater, and mild chemical environments, ideal for outdoor applications
  • Superior Formability: Readily formed by bending, deep drawing, spinning, and roll forming operations
  • Good Weldability: Easily welded using TIG, MIG, and resistance welding techniques with 4043 or 5356 filler wire
  • Non Heat-Treatable Stability: Properties remain stable after welding with no need for post-weld heat treatment
Applications
  • Chemical storage tanks
  • Pressure vessels
  • Building roofing and siding
  • Cooking utensils
  • Food processing equipment
  • Heat exchanger fins
  • Truck and trailer panels
  • Signage
  • General sheet metal fabrication
Quality Assurance

All sheets undergo chemical composition verification via OES, tensile testing to ASTM E8 standards, and surface quality inspection for pinholes and surface defects. Flatness tolerance maintained within 0.5% of length per EN 485-3. Full material traceability from melt to shipment.
